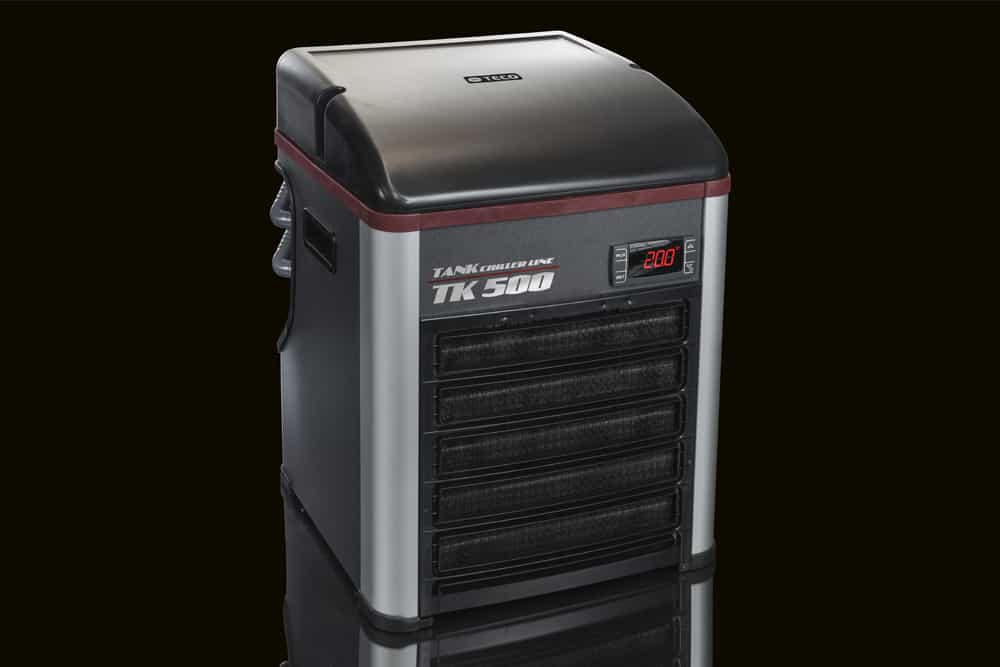

TK 500 Chiller

Teco TK500 Chiller for aquaria up to 500 lt

Efficient Cooling Technology

• The exclusive use of high-quality compressors and of the titanium coaxial heat exchanger, ensures high performance and low energy consumption. The set of technologies used allows you to decrease noise levels and achieve the highest COP (Coefficient Of Performance) contributing to significant energy savings.

Digital Thermostat

• Intuitive setting of functions and accurate temperature detection, resolution 0.1°C/0.2°F. The setting range is 5°-35°C (41°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms.

Efficient Design

• The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The functionality of the shape and the compact size are also suitable for confined spaces.

Unique Feature

• The innovative TECOair SYSTEM makes it possible to rotate the conveyor, thus ensuring optimal air exchange for the chiller and heat output from the cabinet. Quick and easy magnetic air filter maintenance. Moreover, the innovative “pinch off plier” allows easy removal of the chiller for maintenance.

Technical Details

Supply		230V-50Hz (others supplies available on quantity)
Cooling Power Consumption		225 w
Ecological Refrigerant		R134a
Min. & Max Flow Rate		400 lt/h – 800 lt/h
Tank Size		up to 500 lt (water temp. 25°C – Room temp. 30°C – Heating load 0,5 w / lt)
Dimensions		mm. 310 x 310 x 416 (h)
Dimensions		in. 12.2 x 12.2 x 16.38 (h)
Weight		16,5 kg
Connections		fitting 3/4″ – 16mm int. tube diameter

PAY ATTENTION!
TECO TK500, 1000 and 2000 coolers are now no longer supplied with a heating function. Heated models are no longer available. These new types meet the latest CE-Standard and F-Gas regulation conditions with lower energy consumption and better cooling performance than the previous models.
